Development of a novel tau propagation mouse model endogenously expressing 3 and 4 repeat tau isoforms
Masato Hosokawa, a visiting researcher (former Chief researcher) and Masato Hasegawa, a project leader of the Dementia Project at the Tokyo Metropolitan Institute of Medical Science, has published " Development of a novel tau propagation mouse model endogenously expressing 3 and 4 repeat tau isoforms " in the British scientific journal “Brain” on September 13, 2021.
- ＜Title of the paper＞
- Development of a novel tau propagation mouse model endogenously expressing 3 and 4 repeat tau isoforms
- Masato Hosokawa, Masami Masuda-Suzukake, Hiroshi Shitara, Aki Shimozawa, Genjiro Suzuki, Hiromi Kondo, Takashi Nonaka, William Campbell, Tetsuaki Arai, Masato Hasegawa
- British scientific journal ”Brain”
In Alzheimer's disease (AD), corticobasal degeneration (CBD), and Pick's disease (PiD), dementia is thought to develop due to abnormal accumulation of tau protein in neurons and glial cells, resulting in neurodegeneration. This type of tau accumulation is called tauopathy. Tau protein is classified into two types: 3R tau, which has three repeats in the microtubule-binding domain, and 4R tau, which has four repeats in the microtubule-binding domain. In AD, both 3R and 4R tau are accumulated; in CBD, only 4R tau is accumulated; and in PiD, only 3R tau is accumulated. This indicates that the accumulation of tau isoforms is characteristic of each disease. Furthermore, this pathology has been reported to spread in the brain, a phenomenon known as "propagation". In Alzheimer's disease, there is a correlation between the location and spread of tau accumulation and clinical symptoms. In order to elucidate the pathological mechanism of tauopathies and to develop therapeutic agents, it has been necessary to develop mice that can accurately reproduce a specific tau pathology.
In mouse models generated in the past, mouse brains injected with the insoluble fraction of AD patient brains were able to induce the accumulation of 4R tau, but not 3R tau. They also failed to induce the accumulation of 3R tau seen in the insoluble fraction of PiD patient brains. The reason for this could be the difference in the expression pattern of tau between humans and mice. In humans, only 3R tau is expressed in the fetal brain, but later both 3R and 4R tau are expressed. In contrast, wild-type mice express only 3R tau in fetal and juvenile brains, but almost all tau is replaced by 4R tau in the adult, which is a major difference. Studies reported so far have failed to reproduce the accumulation of isoforms characteristic of the disease because they did not take these differences into account at all. Therefore, it was necessary to develop tau mice with the same expression patterns as those of humans. In addition, many experiments reported in the past used 4R tau transgenic mice and that was thought to be the reason why researchers could not induce the accumulation of 3R tau.
Outline of Research
In order to construct a mouse model that can reproduce the pathology of specific tauopathies, we decided to create a new mouse model that expresses 6-isoform tau to overcome the inadequancies of previous tau-injected experimental mouse models. Using genome editing technology, we succeeded in creating a mouse model (Tau 3R/4R mouse) that expresses physiologically normal amounts of both 3R and 4R tau (not an overexpression system) in the adult, just as seen in the adult human brain (Fig. 1).
Next, detergent-insoluble fractions were extracted from autopsy brains of AD, CBD, and PiD patients, and the tau fibrils contained in these fractions were injected into the brains of Tau 3R/4R mice. Immunohistochemical staining using 3R tau-specific and 4R tau-specific antibodies revealed that mice injected with AD (3R+4R tauopathy) showed both endogenous 3R and 4R tau, mice injected with CBD (4R tauopathy) showed only 4R tau accumulation, and PiD (3R tauopathy)-injected mice accumulated only 3R tau, and isoform-specific, seed-dependent amplification of tau was observed (Fig. 2).
In addition, when the brains of mice injected with AD tau fibrils were stained with phosphorylated tau antibody (AT8), the pathology of tau accumulation in the striatum, the site of injection, increased with time, and the propagation of tau accumulation pathology spread to the cerebral cortex, thalamus, and amygdala, which are directly connected to the striatum (Fig. 3).
Finally, when the PiD tau fibril-injected mouse brains were examined in detail, spherical tau accumulation pathologies were observed that were not observed when AD or CBD tau fibrils were injected (Fig. 4). These were very similar to the Pick bodies observed in human PiD. This is the first time that Pick-body-like pathology has been reproduced in a tau fibril injection experiment.
This experiment confirmed the following prion-like properties of tau: (1) abnormal tau has the ability to cause isoform-specific, seed-dependent aggregation, (2) abnormal tau has the ability to propagate, and (3) human tau fibrils injected into the brain can induce the accumulation of endogenous mouse tau across the species barrier. We believe that this novel mouse model can be used to elucidate the mechanism of tau propagation and to search for drugs that inhibit tau propagation (Fig. 5).
Figure 1: Generation of mice expressing both 3R and 4R tau. In the wild-type mouse (left), only 4R tau is expressed in the brain, but in the Tau 3R/4R mouse (right), the expression pattern is similar to that in humans, and both 3R and 4R tau are expressed in the brain.
Figure 2: Tau fibrils from AD, CBD, and PiD patients were injected into the brains of Tau 3R/4R mice, and the tau accumulation was stained with 3R tau-specific antibody (upper panel) and 4R tau-specific antibody (lower panel). AD fibril-injected mice showed accumulation of both 3R and 4R tau, CBD fibril-injected mice showed only 4R tau and no accumulation of 3R tau, and PiD fibril-injected mice showed only 3R tau and no accumulation of 4R tau. These results indicate that abnormal tau accumulation is induced in an isoform-specific, seed-dependent manner.

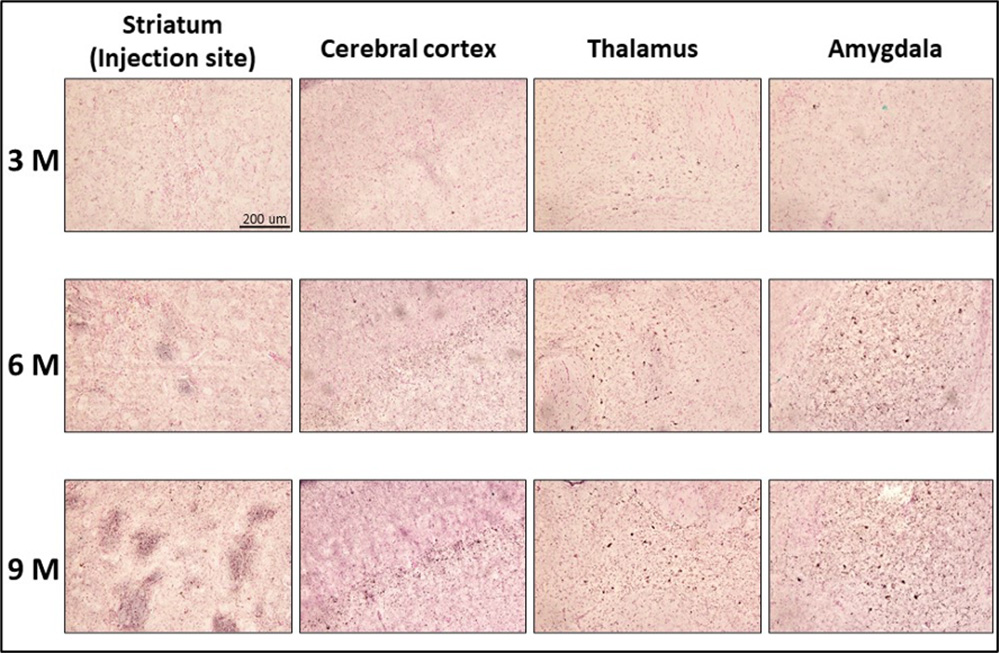

Figure 3: Formation and propagation of tau accumulation pathology in AD fibril-injected mice.
The accumulation and propagation of abnormal tau in the brains of AD fibril-injected mice were observed at 3, 6, and 9 months after tau injection. Tau accumulation in the striatum (injection site), cerebral cortex, thalamus, and amygdala was detected by phosphorylated tau antibody (AT8). In all cases, the degree of tau accumulation was weak at 3 months, but with the passage of time, the pathology of tau accumulation in the striatum increased, and the pathology of tau accumulation spread to the cerebral cortex, thalamus, and amygdala, which are directly connected to the striatum.
Figure 4: Accumulation of Pick-body-like tau in PiD fibril-injected mice.
Brains of PiD-fibril-injected mice were stained with (A) phosphorylated tau antibody (AT8) and (B) anti-mouse tau antibody. Red arrows indicate Pick-body-like tau.
Figure 5: Differences between the previous model (top) and the present model (bottom) in abnormal tau fibril injection experiments.
AD: Alzheimer's disease, CBD: corticobasal degeneration, PiD: Pick disease
Major funding for this research
This research was supported by the Japan Society for the Promotion of Science (JSPS) Grant-in-Aid for Scientific Research, Basic C, "Elucidation of new onset mechanisms of dementia and creation of new therapeutic agents" (18K07618, Masato Hosokawa), and the Mitsui Sumitomo Insurance Welfare Foundation Research Grant, "Elucidation of new onset mechanisms of Alzheimer's disease and creation of new therapeutic agents" (Masato Hosokawa).
(Explanation of Terms*1) Isoforms of Tau
Tau is a microtubule-binding protein that promotes and stabilizes microtubule polymerization in cells of the nervous system. In the human (adult) brain, six isoforms are expressed (Fig. 6). The isoforms are classified as three repeat (3R) tau and four repeat (4R) tau according to the number of repeats in the microtubule-binding region.
Figure 6: Six isoforms of tau.
